Electric Cereal Dryer Oven Machine Corn Maize Wheat Plantain Drying Easy Opration

Jiangyin Brightsail Machinery Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Electric Cereal Dryer Oven Machine Corn Maize Wheat Plantain Drying Easy Opration

  • 1
  • 2
  • 3

Brand Name : Brightsail

Model Number : BSO

Certification : CE ISO

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 30 sets per month

Delivery Time : 25-30 days

Packaging Details : Wooden case or container

Product name : Hot air circulating fruit vegetables spices food drying oven machine

Application : food,chemical,pharmaceutical,etc

Heating source : Steam+electricity

Warranty : One year

Material : Stainless Steel 304

Temperature range : 20-160(adjustable)

Voltage : Customized

Package : Wooden case or container

Contact Now

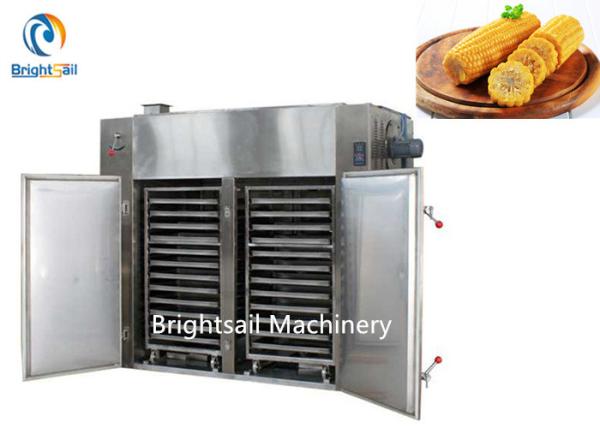

Electric cereal dryer oven machine corn maize wheat plantain drying machine

BSO hot air circulation drying machine is a multifunctional drying device, which mainly circulates inside the box through the forced hot air heated by the electric heating tube or the steam heat exchanger to enhance the heat transfer and achieve the effect of drying the material.

It is widely used in heating and dehumidifying raw materials and production of pharmaceutics, chemical, foodstuff, light industry and heavy industry etc.

Working method:

This machine uses steam or electricity as heat energy, and there are steam radiator or electric heating element to generate heat. The fan is used for convective heat exchange to transfer heat to materials, and fresh air and humid air are continuously supplemented and discharged. The drying time box maintains the appropriate relative temperature and humidity, the biggest feature of which is that most of the hot air circulates in the box, thus enhancing the heat and mass transfer and saving energy.

Main features:

1. Most of the hot wind is circulated in the oven, bringing high thermal efficiency and energy saving.
2. The oven is equipped with adjustable air-distribution plates to evenly dry the materials by forces ventilation.
3. The whole machine runs in stable conditions, low noise, self-control temperature, easy maintenance, and wide applications.

Our company:

Brightsaill Machinery is a company specializing in the research and development, production, sales and service of grinding machines, mixers, sieving machines, overall powder solutions, welding services, welding machines, metal processing, and chemical powders.
Since its establishment, the company has always adhered to the principle of quality first, and technology is life. Based on the concept of customer-centricity, in the production process, we always focus on details to ensure the high performance and high quality of each component and equipment, and stable operation in more than 50 countries around the world.
In addition, we have obtained CE and ISO certificates. Products are exported to the United States, Canada, Germany, Australia, Europe, Africa, South Asia, Central Asia and other countries and regions. The name of our company "Brightsail" is also our hope for all customers and partners around the world. We hope to grow together and set sail.

Technical data:

Model BSO-O BSO-I BSO-II BSO-III BSO-IV
Capacity(kg/batch) 60 120 240 360 480
Blower power(kw) 0.45 0.45 0.9 1.35 1.8
Steam expend(kg/h) 15 20 40 60 80
Electric-heating power(kw) 9 15 30 45 60
Down temp(℃) ±2 ±2 ±2 ±2 ±2
Tray(piece) 24 48 96 144 192
Weight(kg) 820 1500 1800 2200 2800
