Horizontal herb powder crusher machine ginseng root granules making machine
In the crushing process of the chemical, pharmaceutical, food and other industries, due to the different shapes of the raw materials, it is impossible for many materials to complete the whole crushing process, often through coarse crushing, fine crushing and screening. According to this situation, we comprehensively analyzed the characteristics of various raw materials and existing crushing equipment, and carefully developed this BSC series coarse crusher machine.
Working method:

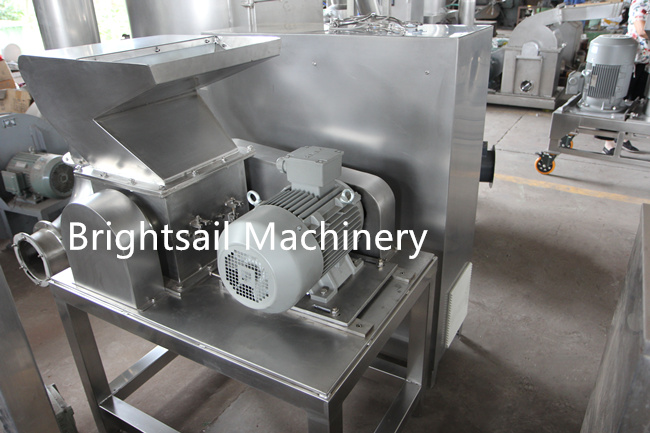

The machine is composed of four parts: frame, motor, feed hopper and pulverizing mechanism. The material enters the pulverizing chamber directly through the feed hopper. The pulverizing purpose can be achieved through the powerful shearing of the moving knife and fixed knife with medium speed rotation. The particle size can be controlled by adjusting the clearance between the moving knife and fixed knife. Through the control of the screen, the particles that meet the requirements will be discharged from the outlet, while the materials that do not meet the requirements will continue to be cut and crushed in the crushing chamber until they meet the requirements.
Main features:
The machine has horizontal crushing structure and the whole machine is made of stainless steel. It has such features as compact structure, convenient operation, stable running, wearability, easy to clean, low noise, good efficiency, etc. So it is the most ideal new production in the current crusher market.
Why choose us:
1. Our seller are professional, they will offer suitable and good quality machine for with reasonable price.
2. All your inquiry or problem will be answered or solved within 24 hours
3. We offer best service and help from receiving your inquiry to you using machine.
4. We own powerful warehousing ability,so make sure your delivery quickly.
5. Our warranty date is one year when customer receive the machine.
Technical data:
| Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
| Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
| Size of input granules (mm) | <100 | <100 | <100 | <100 |
| Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Speed of principal axis(rpm) | 960 | 960 | 960 | 960 |
| Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
| Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
| Weight(Kg) | 200 | 300 | 380 | 500 |
